Step 5. Attaching Strengthening Struts to Main Beams & Posts

These are provided not only for the strengthening of the whole structure but they also look good and help bring the whole project to an attractive conclusion. Please see Figs 23 & 24 below for fixing instructions of the strengthening struts.

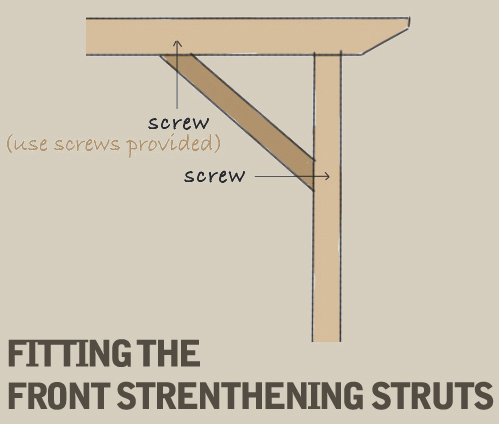

A diagram displaying how to fit the diagonal strengthening struts to the post and main beam at a 45 degree angle

Fig 23

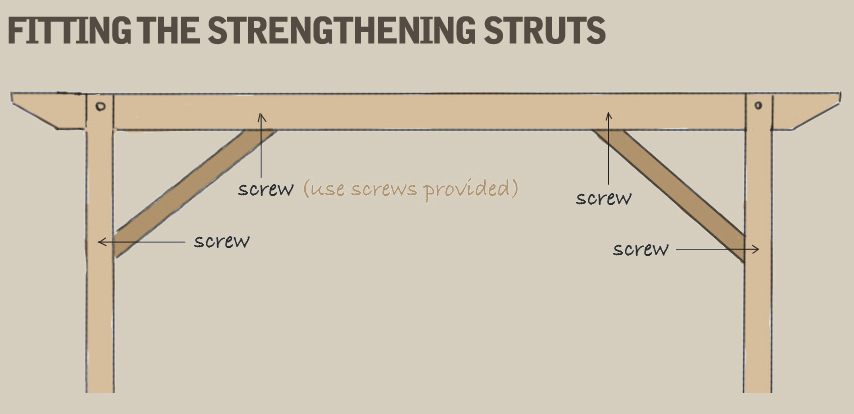

A diagram displaying a side view of the entire pergola, with a strengthening strut attached to the post at either end

Fig 24

If you have specified a either a 9ft x 16ft or a 9ft x 23ft pergola, we have provided another 3 struts (per extra post) for attaching to the rafter, main beam and post for added strength and continuity.

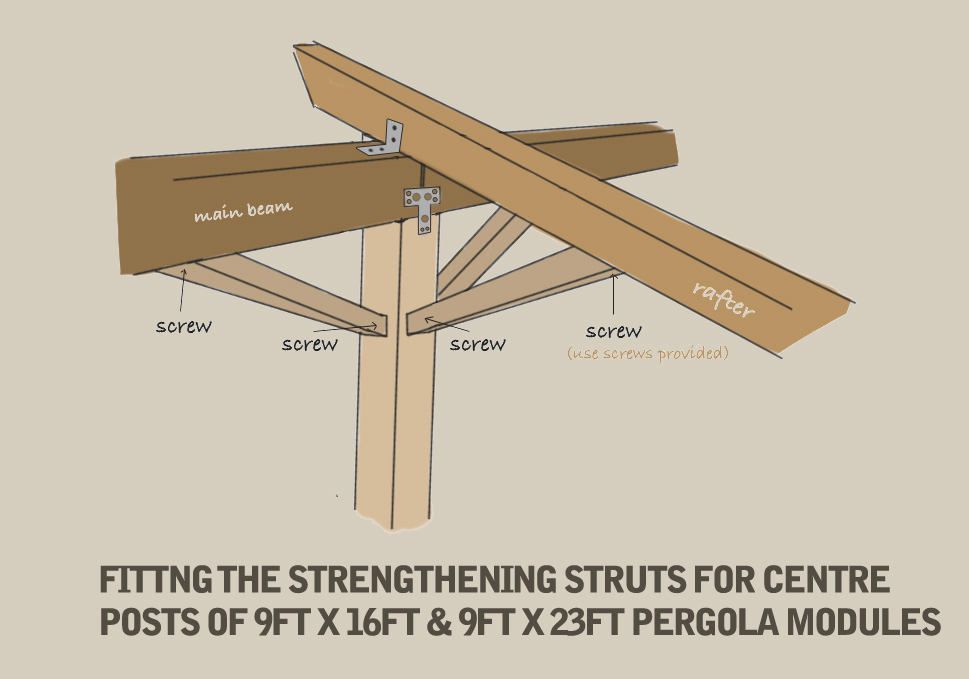

An isometric diagram displaying how to fit the diagonal strengthening struts to the centre posts of 9ft x 16ft and 9ft x 23ft pergolas

Fig 25
